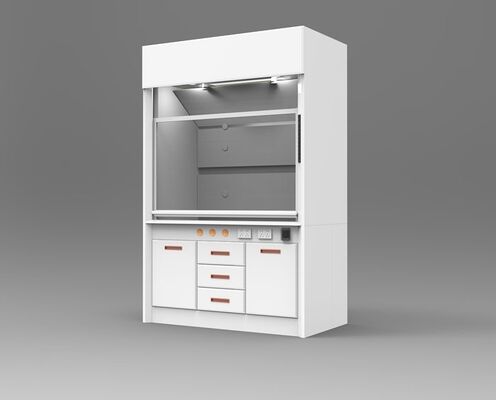

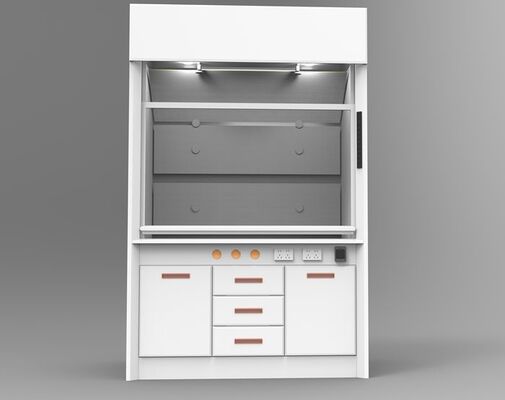

High Level Series Laboratory Fume Hood With Ceramic Countertop For Lab Ventilation Equipment

Material And Structure

1. The main frame: the left and right side plates, front steel plates, back plates, top plates, and lower cabinets are used in cabinets: the bare plate uses ≥1.0mm thick galvanized steel plate, with a high -precision 1500W CNC fiber laser cutting machine, fully automatic CNC control Bending, automatic welding of high-frequency, eleven processes such as oil removal, cleaning, rod removal, cleaning, neutralization, tablet, phosphorification, cleaning, high-temperature drying anti-rust and curing treatment at 180-200 degrees.

Spraying: Adopt a global well -known brand Akzunobur Ringer oxygen resin powder, coating thickness ≥75 μm, smooth and uniform surface, consistent color, no flowing, wrinkles, bubbles, depression, indentation, leakage, rust, high temperature, high temperature, high temperature, high temperature, high temperature CIT of, high adhesion, duplicate, acid and alkali, beautiful and durable. Essence The outside of the drawer and the outer door of the cabinet are integrated bending formed 45 degrees slope outer convex design.

2. Line lining board Directory: The use of solid core anti -double special board (5mm thick) has good anti -corrosion and chemical resistance. Directorial board fixing parts use PP high -quality material to make integrated molding.

3. Move window: 5mm high -quality tempered glass, the door opening height is 700mm, free lifts, and the ups and downs of the door use the elevator heavy structure structure, without any residence, the door -oriented device is composed of corrosive polychlorine B rare material materials Essence The movement of the door handle is all -in -one. Next to the door is an anti -chemical corrosive plastic package, and the door is opened and closed with a rubber buffer device.

4. The guide plate: The ahead of the fume hood is a glass window in front of it, with a good visual range. The guide plate and the lining material are consistent, and the drain plate bracket consists of non -metallic materials.

5. The lower cabinet: The countertop is ≥18mm rock -class ceramics, which is a 11 -level non -combustible material; the integrated real core black blank body is fired, and there is no yellow rust -colored mezzanine in the middle. The surface of the ceramic is flat without orange peel, flat and uneven, and the feel is delicate and skin feel.

Accessories

• The fume hood is equipped with an imported disposable PP small cup slot, which is resistant to acid and alkali and corrosion.
• Accessories (single -mouth seven -character water faucet) in the fume hood are composed of brass and installed inside the fume hood.
• Variety Cabinet Control Panel: Use LCD Display Control Panel
• Variety cabinet lighting: LED waterproof, quickly start type, install the top of the fume hood. There are safe glass panels on the lighting device and sealed with the cabinet.
• Socket: With 10A 220V three -hole multifunctional socket. The line uses a 2.5 square copper core wire.
• High -grade buffer slide: 16 -inch dedicated thickened sliding rail, mute and smooth.
• Hinge: Using thickened large curved buffer hydraulic hinge
