| Place of Origin: | Jiangxi,Guangdong |
| Brand Name: | SUCLAB |
| Certification: | ISO9001, ISO14001, OHSAS18001, CE |
| Model Number: | HZJ-SFH06 |

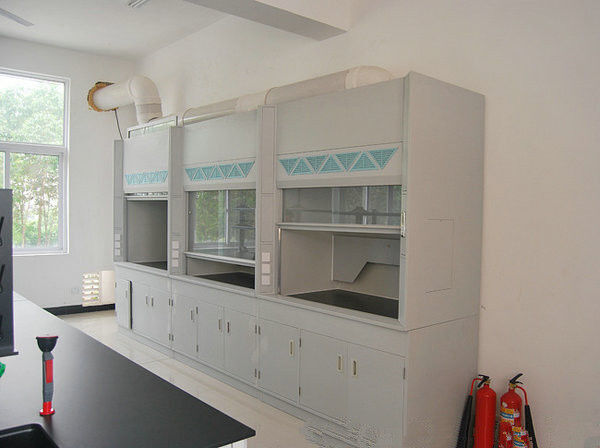

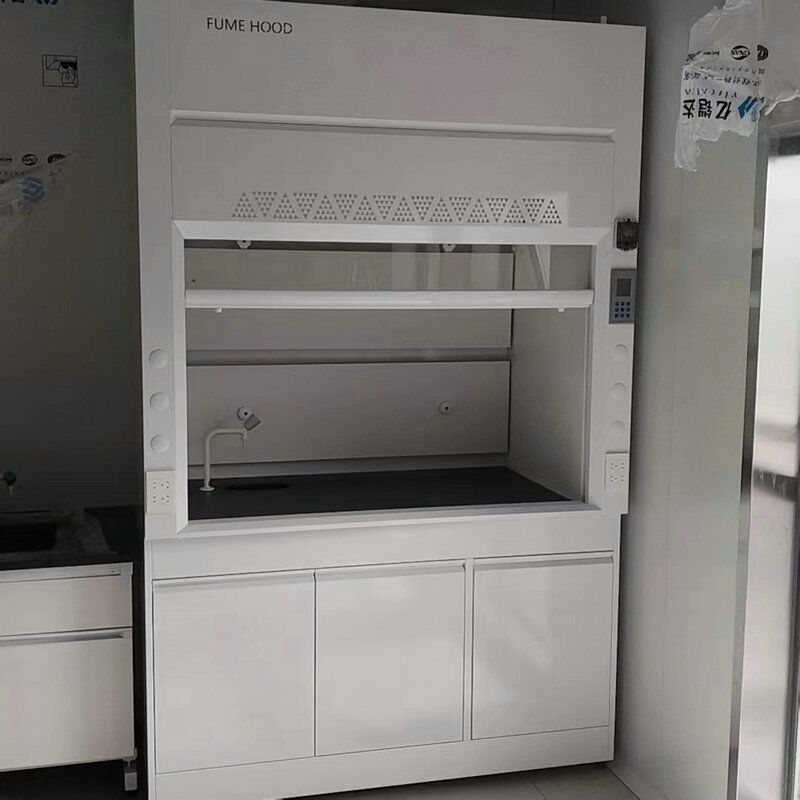

High Safety Laboratory Fume Cabinet With Ventilation System
Features of Laboratory Fume Cabinet:
1. 12.7mmm phenolic resin, acid and alkali resistant.
2. 0.37kw pp fans, it can Free air flow.
3. The mainly material is for 1.0mm thickness galvanized steel plate.
4. 1 Led light, 2 sockets and 1 touch monitor.
5. It can be used in food, chemical industry,medical lines.
Descriptions of Laboratory Fume Cabinet:
| Product Name | Laboratory Fume Cabinet |
| Material | All Galvanized Steel plate |
| Size | 1200*850*2350MM, 1500*850*2350MM, 1800*850*2350MM |
| Bench Tops |
Using 12.7mm thickness phenolic resin worktop, can resist acid and alkali, wear and high temperature; the edge part adhesive processing with providing a waterproof edge, and the color of table is black. |
| Cabinet |
1. The upper box molding with 1.0mm thickness galvanized steel plate bending and welding, the surface of epoxy powder electrostatic high-pressure spray, can resiste acid and alkali. 2. The lower box molding with 1.5mm thickness galvanized steel plate bending and welding, the surface of epoxy powder electrostatic high-pressure spray, can resist acid and alkali. |
| Inner Liner | Using HPL physiochemical board to make for lining plate and the flow guide plate. |
| Windows | Using 5mm thickness tempered glass, continuously variable counterweight design, window lift freely, can stop at any position. |
| Power Distribution | Choose Zhejiang CHINT senior socket, the specifications for rated current 16A three holes socket, 10A five holes socket, 25A/380V four holes socket. |
| Air Exhaust | Design of third level air exhaust, no exhaust dead, air volume can be adjustable, the speed of surface wind can be up to 0.5m/s. |
| Lighting | 30W or 40W Fluorescent lamp lighting with hidden type. |
| Functions | The cabinet body is provided with a leakage, overload, short circuit automatic protection device, and is equipped with the fan control system, practical and safe. |
| Sink | 6mm thickness imported PP material with pressure, corrosion resistance and high temperature performance. |
| Water Faucet | Ventilation cabinet special single water faucet, with anti-corrosion performance, imported. |
| Hinges | 90 degrees, 180 degrees adjustable hinge, Guangzhou produced high-qualityhinge. |
| Adjustable Footing | Stainless steel with rubber adjustable feet, adjustable height to 50mm. |
| Working Door Opening Height | 800mm~1000mm |
