| Place of Origin: | Jiangxi,Guangdong |
| Brand Name: | SUCLAB |
| Certification: | ISO9001, ISO14001, OHSAS18001, CE |
| Model Number: | HZJ-SFH05 |
Ducted Laboratory Biology Fume Hood With High Efficiency Exhaust System
Descriptions of Biology Fume Hood
| Product Name | Biology fume hood /cupboard |
| Brand | SUCLAB |
| Application | Laboratory/Academe/University |
| Metarial | 1.0/1.2mm Thickness Galvanized Steel Plate |
| Color | blue and white(You can choose the color you like) |
| Size | L*W*H 1200/1500/1800*850*2350mm |
| Window | Visual Window,6mm tempered glass |
| Body | Using 1.0mm thickness galvanized steel material as main frame |
| Illumination | with not less than 300 Lux 30W fluorescent lamp set |
| adjustable door glass |
Adjust door glass: use thick 6mm transparent acrylic glass to make, acid and alkali performance |
| Light | full cover type three-way lamp, lamp cover with 220v * 20w * 2 |
| Accessories | With a small PP material cup and laboratory dedicated single water taps. |
| Technical specification | Noise: less than 60db (International standard), Face velocity: 0.5m/s, 220V |
| Exhausting Duct | Anti-corrosion PP/PVC duct |
| Function |
With an intelligent automatic delay protection device to exhaust residual corrosion air completely and prolong the service time of fume cupboard. |
| Exhaust fan | not include exhausting duct &exhaust fan, will provide after receiving the detailed design of exhaustion duct. |

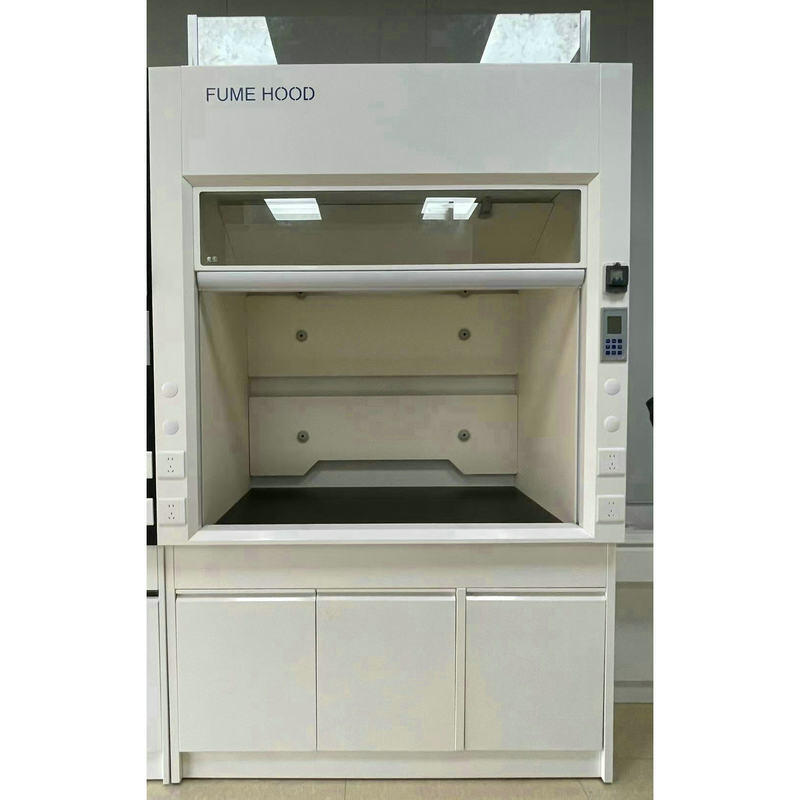

Photos of Biology Fume Hood
3D Drawing of Laboratory Furniture
