| Place of Origin: | China |
| Brand Name: | suclab |
| Certification: | SEFA SGS ISO9001 ISO14001 OHSAS |
| Model Number: | standard |
Stainless Steel Laboratory Combined Fume Hoods
Descriptions of Laboratory Hoods:
|
1. Stainless steel fume hood for special applications, such as ADA, hydrofluoric acid (HF), perchloric acid.
2. Cabinet Structure of fume hood: Material: 1.0mm 304 stainless steel plate.
|
|
3. Inner liner panel: Imported from America, 6mm compact panel, acid and alkali resistance, temperature-resistance, anti-moisture.
|
|
4. Guide plate: Imported from America, 6mm compact panel, reasonable and knock-down guide structure. Concentrated and effective discharge air, letting off different poisonous gas
|
|
5. Table board: acid and alkali resistance, anti-moisture. Impact resistance, 12.7mm thickness chemsurfchemical-resistant laminate with 25.4mm edge/Trespa panel/Epoxy resin /stainless/ceramics as desktop.
|
|
6. Window: 6mm thickness steel safe glass, balancing form elevation and subsidencei, it can be stopped at any position by pulling.
|
|
7. Lighting equipment: 20W*2 antisepsis daylight lamp, lamp house is insulated with gas. Lightness on table not lower than 400LUX.
|
|
8. Operation panel: lighting switch, ON/OFF switch, two sets of 220V/10A versatile electric socket.
|
| 9. Ventilation equipment: selecting rust-resistance, low wasting, low noise and famous fan and special wind tube. Noise can be reduced at about 55 DB. |
|
Accessories: vertical and single test cock: made by brass, the surface is treated by EPOXY baking paint. Cup slot: acid and alkali resistance, PP water cup. Exterior size for steel lab fume hood( fume cupboard & fume cabinet ): 1200/1500/1800x850x2350mm. |

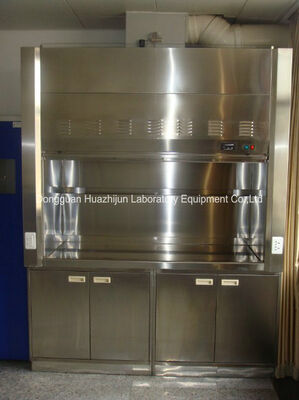

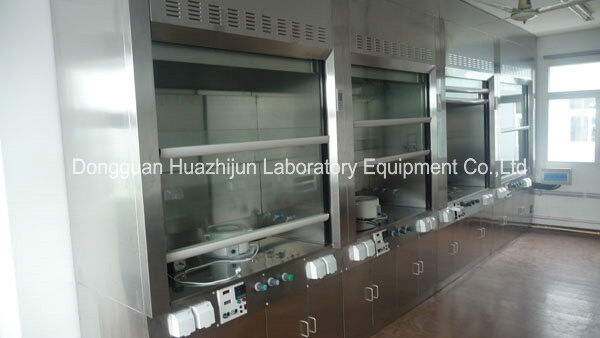

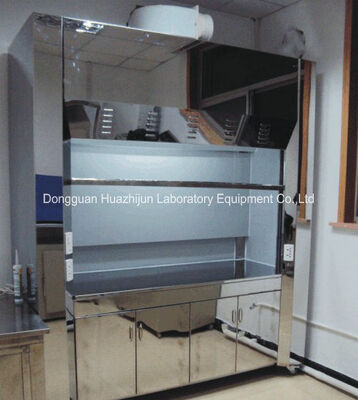

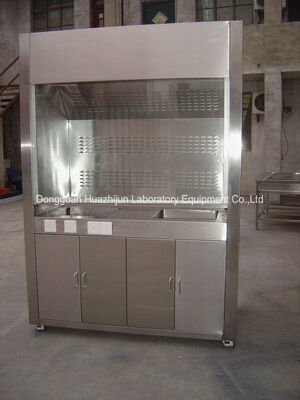

Photos of Laboratory Hoods:
