Product Details:
Payment & Shipping Terms:
|
| Name: | Chemistry Lab Bench | Material: | 1mm Thickness Cold Rolled Steel Plate |
|---|---|---|---|
| Size: | L*W1500/750mm*H850mm | Structure: | Floor Mounted |
| Worktop: | 16mm Thickness Epoxy Resin,Customized | Color: | Blue/White/Black/Customized |
| Application: | Lab / School / Medical / Hospital | Warranty: | 3 Years On Normal Use |
| Lead Time: | 7-15 Workdays | General Use: | Commercial Furniture |
Epoxy Resin Worktop Chemistry Lab Bench With Black Colour Embedded Handle
Feature
1. Countertop: Acid and alkali resistance,not easy to deform and fade.
2. Cabient: Beautiful and generous,bearing capacity and impact resistance.
3. Drawer: Three section silent rail,aluminum alloy handle,long sevice life.
4. Foot: 5mm adjustable foot,nylon or stainless steel material.
5. Type: Floor mounted,C-frame or H-frame Structure with cabient.
6. Colour: According to requirement of client,it can be customized.
Specification
| Product Name | Chemistry Lab Bench |
| Material | 1.0mm Cold Rolled Steel Sheet |
| Dimension | L(Customized)*W750/1500mm*H850mm |
| Worktop | 12.7mm Thickness Phenolic Resin |
| Cabinet | Each spare parts according to the different weight bearing with different thickness of high quality cold-rolled steel plate for material, surface after pickling, phosphating, uniform gray white epoxy spray, beautiful appearance, special force position required stiffener, its carrying capacity and anti impact capability can achieve laboratory use requirements |
| Door Panel and Drawer Panel | Using internal and external double-layer structure, the drawer for cold-rolled steel sheet through integral forming, support bearing capacity is strong, After the seal plate bending,connected to the outer panel of the drawer via drilling screws, All blend into one harmonious whole. appearance, elegant appearance |
| The Cabinet of Bottom Plate | Cold rolled steel through integral forming is added in the reinforcement, in order to strengthen its bearing capacity,preventing plate from stress and deformation |
| Handle | According to customer demands with plastic inner concave buckle or alloy matt handle, beautiful appearance, humanized design. The cabinet body can be completely empty opened, not the middle bracket. The cabinet with integrated forming active board adjusting device, movable board can be continuously step adjustabled |
| Door Meader | With touch beads, can clamp the door anti-collision glue, prevent shut the door when the drawer collision, wear surface spraying layer and noise |
| Movable Back Board | Using movable type, free disassembly lifting type structure, and is convenient for the maintenance of water, electricity, gas pipelines in use process etc |
| Movable Laminate | Add stiffener, to strengthen its load-bearing capacity, prevent the plate deformation, steel plates with pin, can be freely disassembled, also can adjust the height |
| Hinges | 175 all open type hinge, corrosion protection, no noise, do not rebound, good strength, not broken, long life and other characteristics |
| Slide Way | Excellent silencing rails, to ensure that the drawer is fully opened, the load-bearing and deformation. The drawer is not only the daily switch without noise, more make the stocky firmly, not easily deformed |
| Adjustable Feet | Free disassembly, step by step continuous height adjustment |
| Bumper | When shutting the door and drawer,to prevent collision,wear surface spraying layer and noise |
Wood Lab Bench of Specification
Main Frame
Generally adopts C-type high-quality square steel, the surface is pickled, phosphatized, uniform gray epoxy spraying, chemical anti-rust treatment, acid and alkali corrosion resistance, good load bearing performance and long service life. Each group of independent test benches can be equipped with a circuit breaker safety protector so that each test bench can independently control the power supply.
Countertop
Generally adopt epoxy resin board, phenolic resin board, etc. The surface is treated by technology, smooth and pore-free, acid and alkali resistant, anti-corrosion, milling edge treatment, table top corrosion resistance and waterproofing meet the high quality standards of the laboratory industry. .
Door Panel
E1 grade high quality environmental protection type melamine board is generally used; all sections are treated with high quality PVC edge sealing and waterproofing, and the four sides are chamfered and smoothed.
Cabinet Body
E1 grade double-sided gray high-quality environment-friendly melamine board is generally used; all visible surfaces are treated with high-quality PVC edge sealing and waterproofing. All the plates are disassembled and three-in-one connection, the structure is stable, the bearing performance is good and easy to be demolished, which is conducive to Used in this special working environment of the laboratory.
Drawer
The drawer panel material is the same as the door panel. The bottom plate is generally made of E1 grade high quality MDF. The other materials are the same as the cabinet.
Active Backboard
E1 grade 4mm thick double-sided gray high-quality MDF board is generally used. All sections are waterproofed by high-quality PVC edge sealing. The activity is detachable and easy to use.
Hinge
Usually adopts self-closing stainless steel damping hinge. When the horizontal angle of the cabinet is less than 15 degrees, the door can be closed by itself. It has good elasticity, beautiful appearance, no noise during use and long service life.
Guide Rail
It adopts three-section guide rail, and the surface is electrostatically sprayed (galvanized) with black epoxy resin. It is corrosion-resistant and convenient for the staff of hand-held items to facilitate the use in the special working environment of the laboratory.
Handle
Handle stainless steel, aluminum alloy or anti-corrosion PVC material, mold molding, surface chemical treatment, beautiful appearance, user-friendly design.
Universal Adjustment Foot
Special injection molding adjustable foot, load-bearing, moisture-proof, anti-skid, antibacterial, anti-corrosion, can adjust the height of the cabinet according to the indoor floor; the appearance is beautiful, the design is humanized.
Socket
It adopts milky white 22V 16A universal two or three plug sockets, and uses various domestic or imported instrument plugs to be safe and durable.
Pipeline Trough
Single-row body, steel structure, self-removal and maintenance line, beautiful appearance, safe and convenient to use.

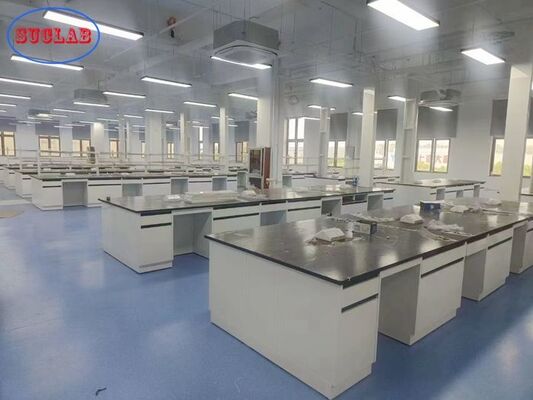

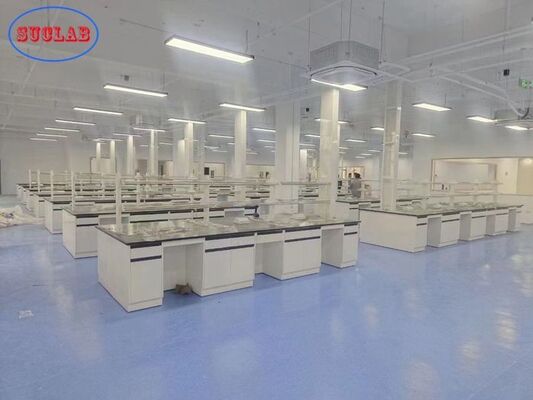

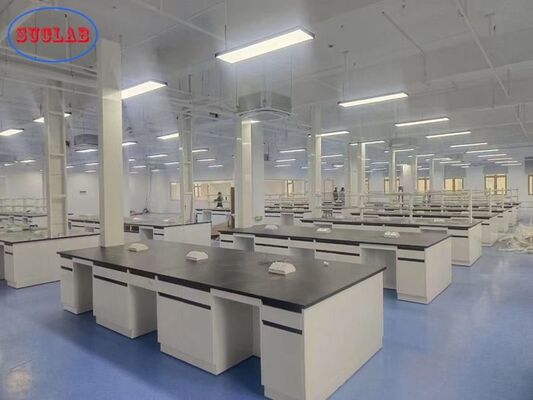

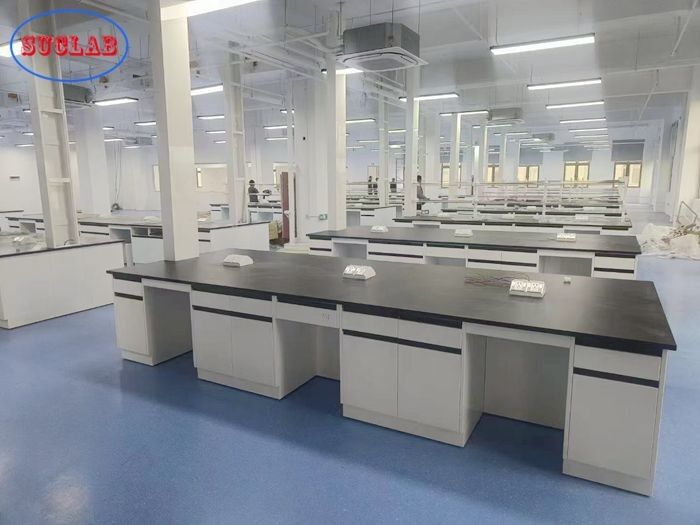

Product Show
Why Choose Us
1. Our Factory was established in 2010.It has ten years of production experience.
2. We have well laser cutting machine and automatic bending machine.
3. We have strong sales team and professional designer in foreign trade.
4. We have professional intallation service and three years warrenty.
5. We will customize product and give the better solution according to your requirement.
