Product Details:
Payment & Shipping Terms:
|
| Product Name: | Laboratory Fume Cupboard | Material: | Cold-roll Steel |
|---|---|---|---|
| Type: | Laboratory Fume Hood For Inspection And Testing Center | Color: | White,Blue,Optional |
| Size: | 1200/1500/1800*800*2350mm Or Customized. | Worktop: | Epoxy Resin,12.7mm Phenolic Resin Board |
| Application: | Chemisty Lab | Noise: | ≤60dB |
| Power Supply: | 220V/60Hz | Blower: | Built-incentrifugal Blower |
New Style Steel Laboratory Fume Cupboard With Ducted Ventilation System
Type:Laboratory Fume Cupboard
General Use:Commercial Furniture
Material: 1.0 mm thickness cold rolled caoting epoxy resin, no lost panit
Size:1200/1500/1800*850*2350mm or customized
Brand Name:SUCLAB
Cabinet:.1.0 mm thickness cold rolled caoting epoxy resin, no lost paint.
Windows:5 mm thickness explosion proof tempered glass
Hinge: high quality stainless steel hinge
Handle:Aluminum material .
Color: grey/ blue /red or customized
Worktop:Phenolic resin /epoxy resin / pp /frp worktop .anti alla reagent and acid alkali
Accessory:Fan, flue pipe and elbows
Descriptions:
| Material | All steel 1.0 mm thickness cold rolled steel spray epoxy resin . no lost paint |
| Goods Name | Laboratory fume cupboard |
| Size | 1200/1500/1800*850*2350MM or customized |
| Bench Tops |
12.7mm thickness solid phenolic resin or expoxy resin board tabletop, can resist acid and alkali, wear and high temperature; the edge part adhesive processing with providing a waterproof edge, and the color of table is black. |
| Cabinet |
1. The upper box molding with 1.2mm thickness cold rolled steel plate bending and welding, the surface of epoxy powder electrostatic high-pressure spray, can resiste acid and alkali. 2. The lower box molding with 1.5mm thickness cold rolled steel plate bending and welding, the surface of epoxy powder electrostatic high-pressure spray, can resist acid and alkali. |
| Inner Liner | Using HPL physiochemical board to make for lining plate and the flow guide plate. |
| Windows | Using 5mm thickness tempered glass,continuously variable counterweight design, window lift freely, can stop at any position. |
| Power Distribution | Choose Zhejiang CHINT senior socket, the specifications for rated current 16A three holes socket, 10A five holes socket, 25A/380V four holes socket. |
| Air Exhaust | Design of third level air exhaust,no exhaust dead, air volume can be adjustable, the speed of surface wind can be up to 0.5m/s. |
| Lighting | 30W or 40W Fluorescent lamp lighting with hidden type. |
| Functions | The cabinet body is provided with a leakage, overload, short circuit automatic protection device, and is equipped with the fan control system, practical and safe. |
| Sink | 6mm thickness imported PP material with pressure, corrosion resistance and high temperature performance. |
| Water Faucet | Ventilation cabinet special single water faucet, with anti-corrosion performance, imported. |
| Hinges | 90 degrees, 180 degrees adjustable hinge, Guangzhou produced high-qualityhinge. |
| Adjustable Footing | Stainless steel with rubber adjustable feet, adjustable height to 50mm. |
| Working Door Opening Height | 800mm~1000mm |

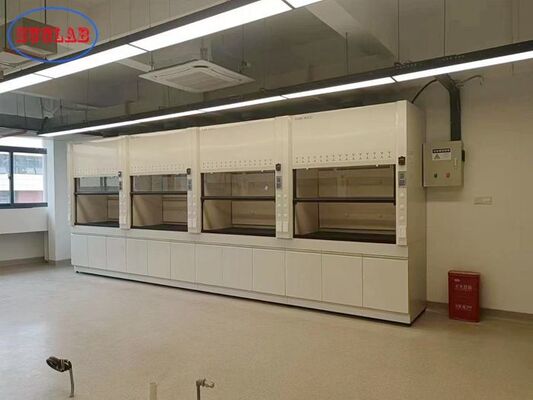

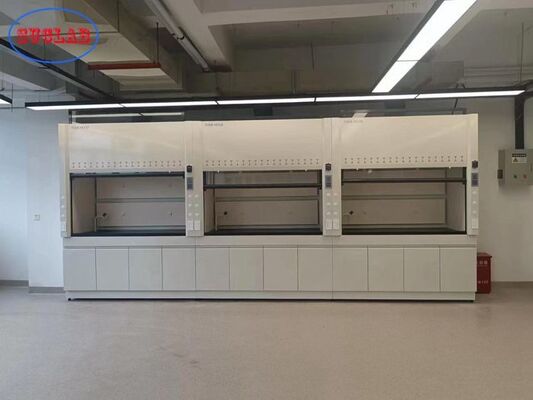

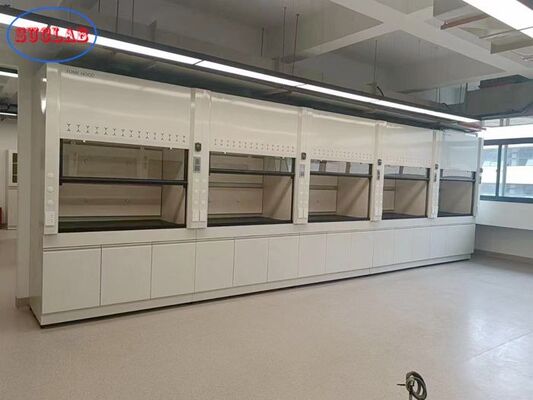

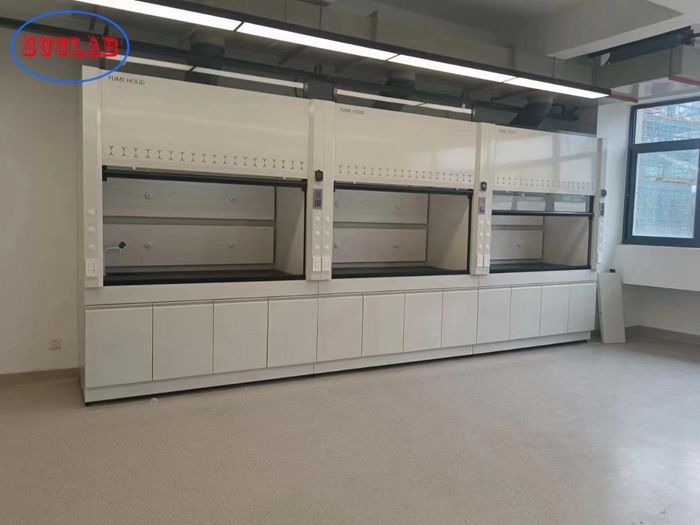

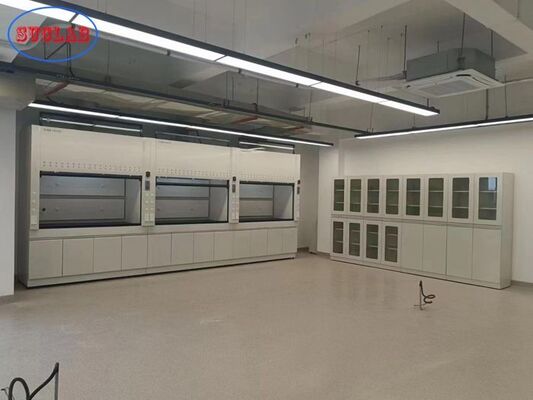

Photos:
